Bar-Wrapped Pipe (AWWA C303) Inspection
Bar-wrapped pipe is the concrete pressure pipe that rarely makes the news. Prestressed concrete cylinder pipe fails loudly, so it gets the inspection budget. AWWA C303 pipe tends to corrode quietly, weep, and keep working, which is exactly why so much of it sits in transmission systems across North America with no condition data attached to it. Utilities are increasingly finding out that quiet is not the same as healthy.
PICA inspects bar-wrapped pipe from 10 to 72 inches in diameter, which is the full size range the C303 standard covers. The measurement that matters on this pipe is remaining steel cylinder wall, and PICA reports it alongside a count of individual bar breaks from a single in-line run, with the main in service up to 36 inches.
Bar-wrapped pipe inspection at a glance:
- Sizes covered: 10 to 72 inches, the full range of the AWWA C303 standard, which specifies working pressures up to 400 psi.
- In service up to 36 inches with SeeSnake and Chimera, free-swimming or winched. Above 36 inches, dewatered and winched with RAFT or EMIT.
- One run reports remaining steel cylinder wall thickness and counts individual bar breaks.
- Minimum reported defect is 1 inch by 1 inch at 20 percent wall loss, read through cement mortar and scale up to 25 to 30 mm (about 1 inch) thick.
- Independently blind-tested on C303 pipe by Simpson Gumpertz and Heger, with findings verified in the field.
What bar-wrapped pipe is, and what it is not
AWWA C303 pipe is built around a welded steel cylinder with steel joint rings welded to each end. Cement mortar is applied inside the cylinder to form the lining, a continuous mild steel bar is wound helically around the outside under light tension, and a dense mortar coating covers the cylinder and the bar wrap together. Old drawings sometimes call it pretensioned concrete cylinder pipe, the name used in the 1987 edition of the standard. The industry retired that term because it was too easily confused with PCCP, so bar-wrapped pipe is the name to use today.
Terminology causes real confusion here, and it matters when a utility is reading forty-year-old drawings. Concrete cylinder pipe, or CCP, is the umbrella term for the whole family. Four distinct types sit inside it:
| Pipe type | Standard | Reinforcement |
|---|---|---|
| Prestressed concrete cylinder pipe (PCCP) | AWWA C301 | High-strength prestressing wire under high tension |
| Reinforced concrete cylinder pipe (RCCP) | AWWA C300 | Reinforcing cages in concrete, over a welded cylinder |
| Reinforced concrete non-cylinder pipe (RCP, also written RCNCP) | AWWA C302 | Reinforcing cages, no steel cylinder |
| Bar-wrapped pipe (BWP) | AWWA C303 | Mild steel bar wound helically over the cylinder |
Bar-wrapped pipe and RCCP are not the same product, and neither one is what people mean when they say PCCP. If your records describe a line as concrete cylinder pipe without a standard number, the pipe type is still an open question, and the answer changes which inspection method applies. PICA's service applications overview covers each pipe type PICA inspects.
Why bar-wrapped pipe needs a different measurement
In PCCP, the prestressing wire holds the concrete core in compression, so broken wires are the headline condition indicator and a wire-break count tells you a great deal. Bar-wrapped pipe behaves more like steel pipe. The cylinder carries a much larger share of the structural load, and the mild steel bars are thicker and wrapped under less tension than prestressing wire, so corrosion takes considerably longer to break them.
That changes what a useful inspection has to produce. A method that counts bar breaks and says nothing about the cylinder can return a comfortable result on a segment that has lost a serious fraction of its wall. Remaining cylinder wall is the number that belongs in a capital plan for this pipe.
It also explains the failure pattern. The mortar coating holds the steel in a high-alkalinity environment that resists corrosion. Once that coating is cracked, damaged or chemically degraded, the cylinder and the bars corrode and pit underneath a surface that still looks intact. What follows is usually a small leak that is not visible from the surface, growing over time, and eventually a large leak or a failure. Sudden bursts on C303 are unlikely, and where they have been reported the line had almost certainly been leaking undetected for a long time first. One thing bar-wrapped pipe does not suffer from is hydrogen embrittlement, which is a prestressing wire problem specific to PCCP.
Which tool runs in your main

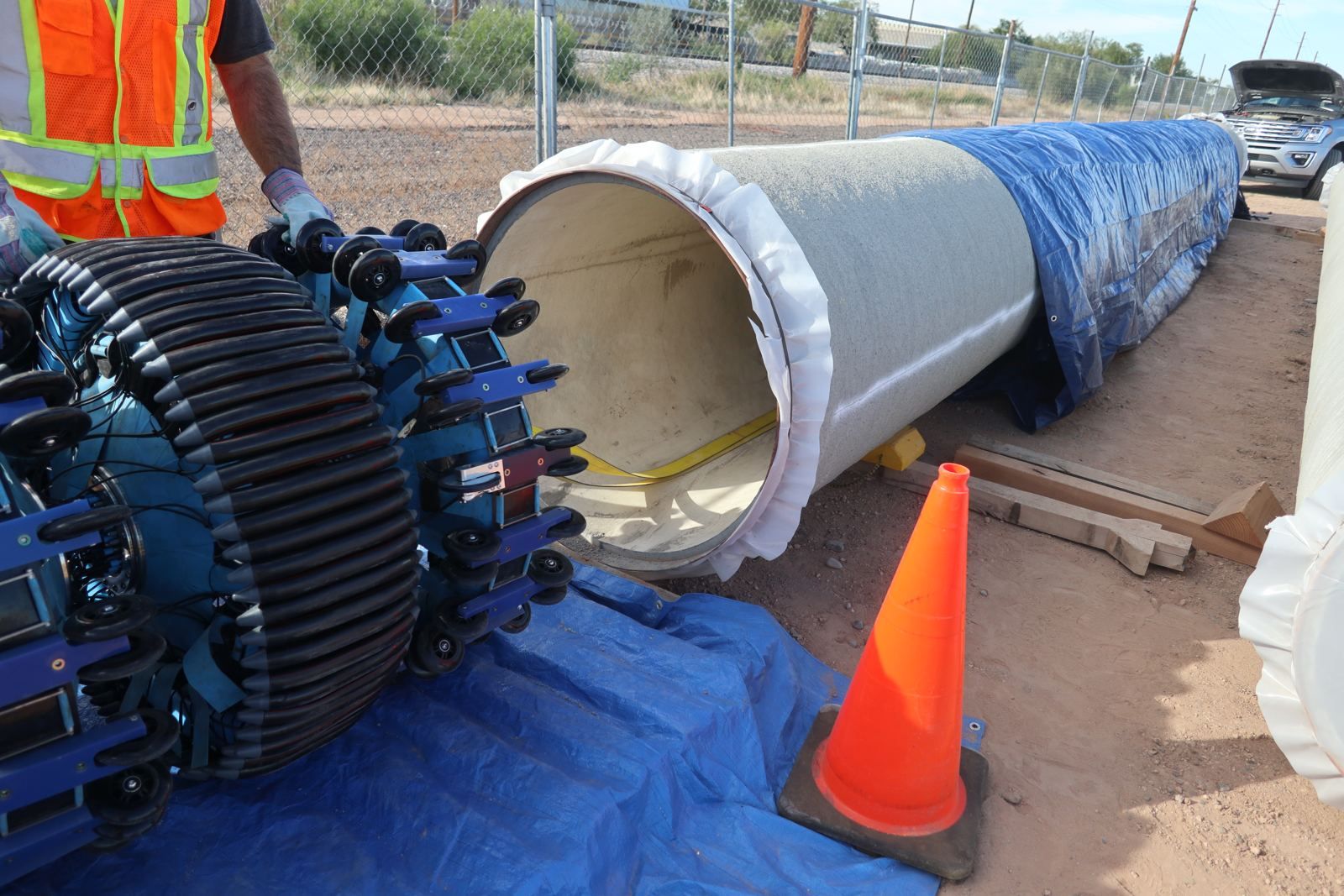

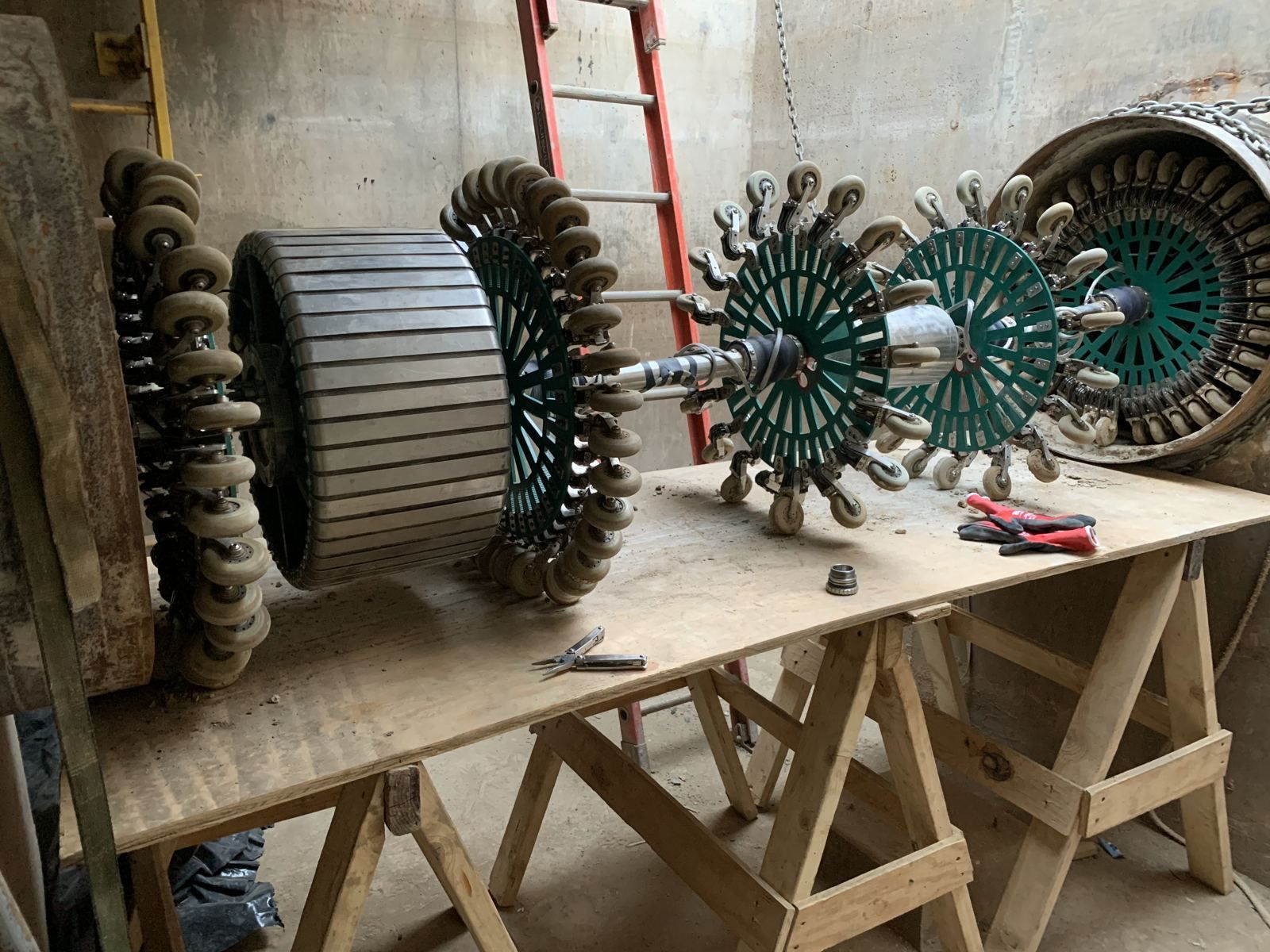

Diameter and whether the main can be taken out of service decide the tool. All of them are remote field testing tools, and all of them measure the cylinder through the mortar lining.

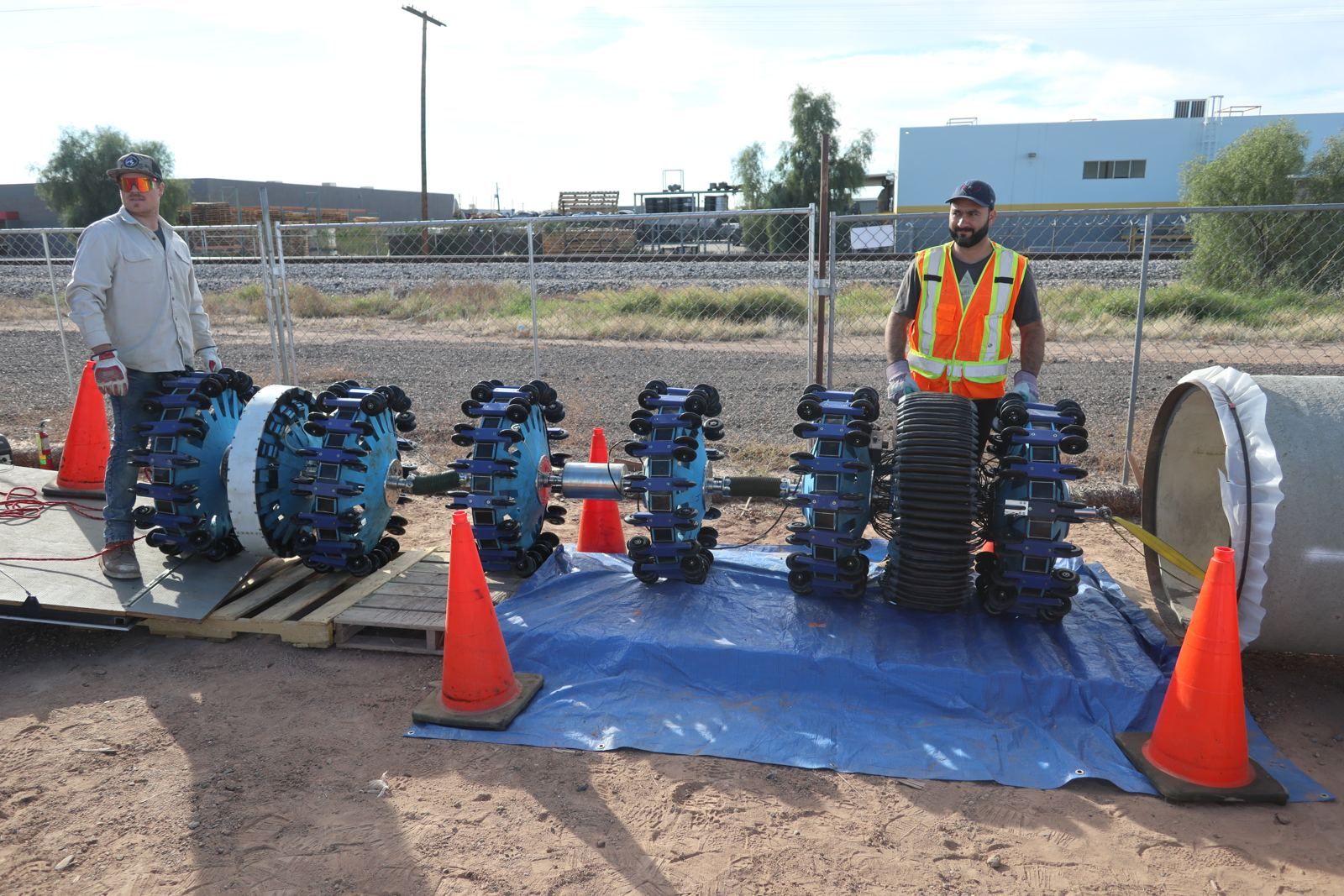

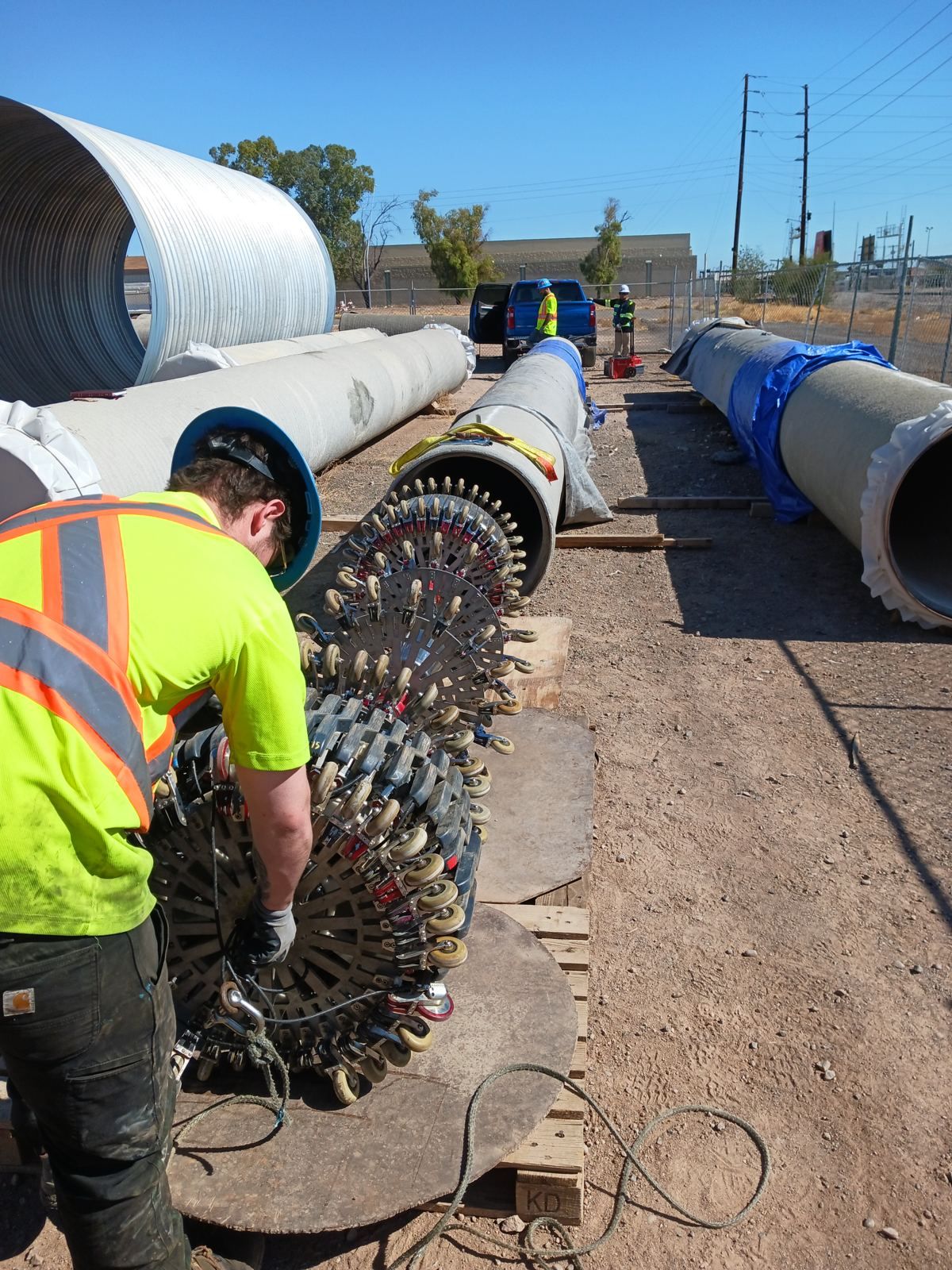

| Diameter | Tool | Deployment |
|---|---|---|
| 10 to 36 inches | SeeSnake and Chimera | In service, free-swimming or winched |
| 36, 42 and 48 inches | RAFT | Out of service, dewatered and winched, assembled inside the pipe |
| 48 inches and above | EMIT | Out of service, dewatered and winched, assembled inside the pipe |

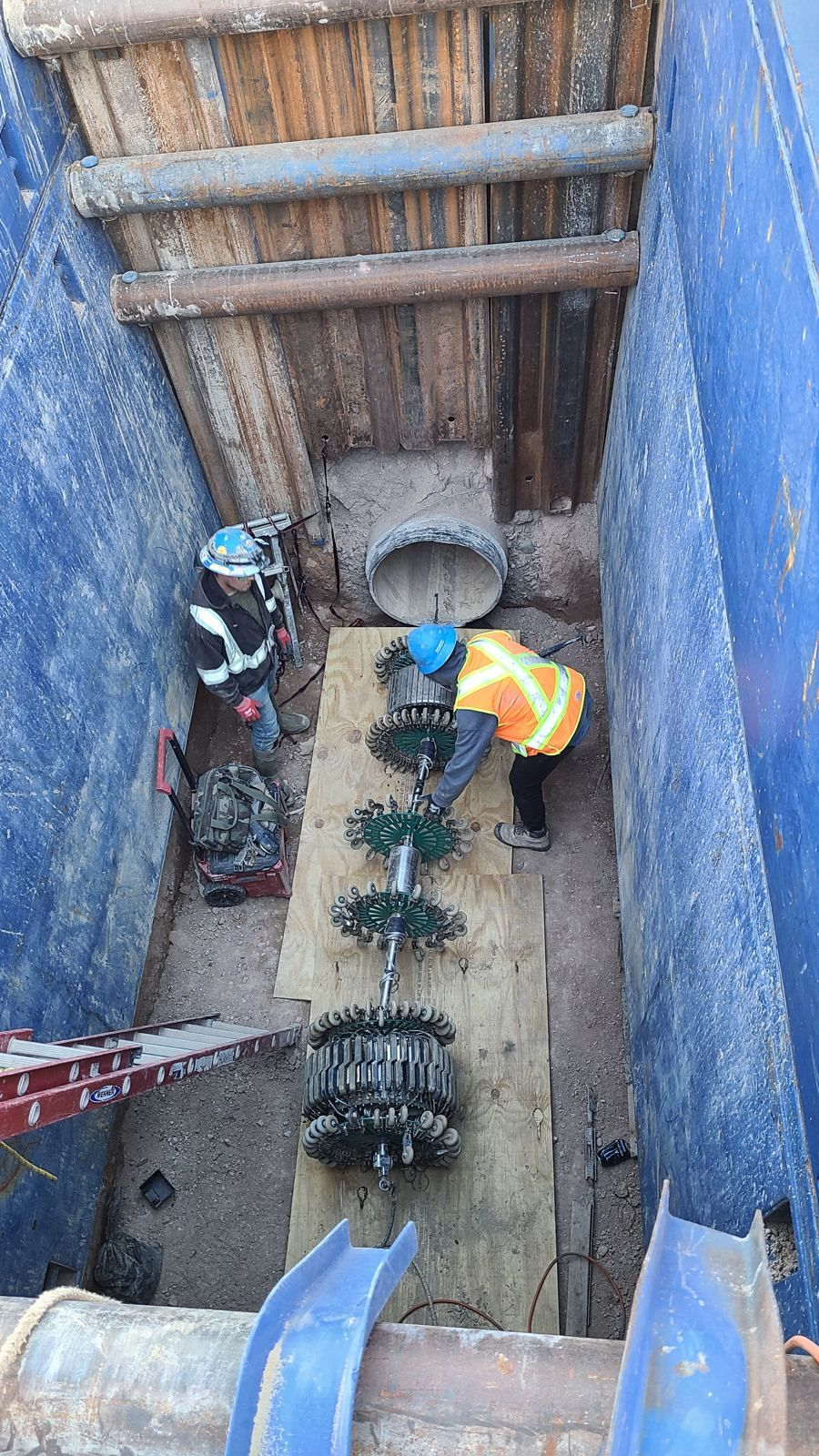

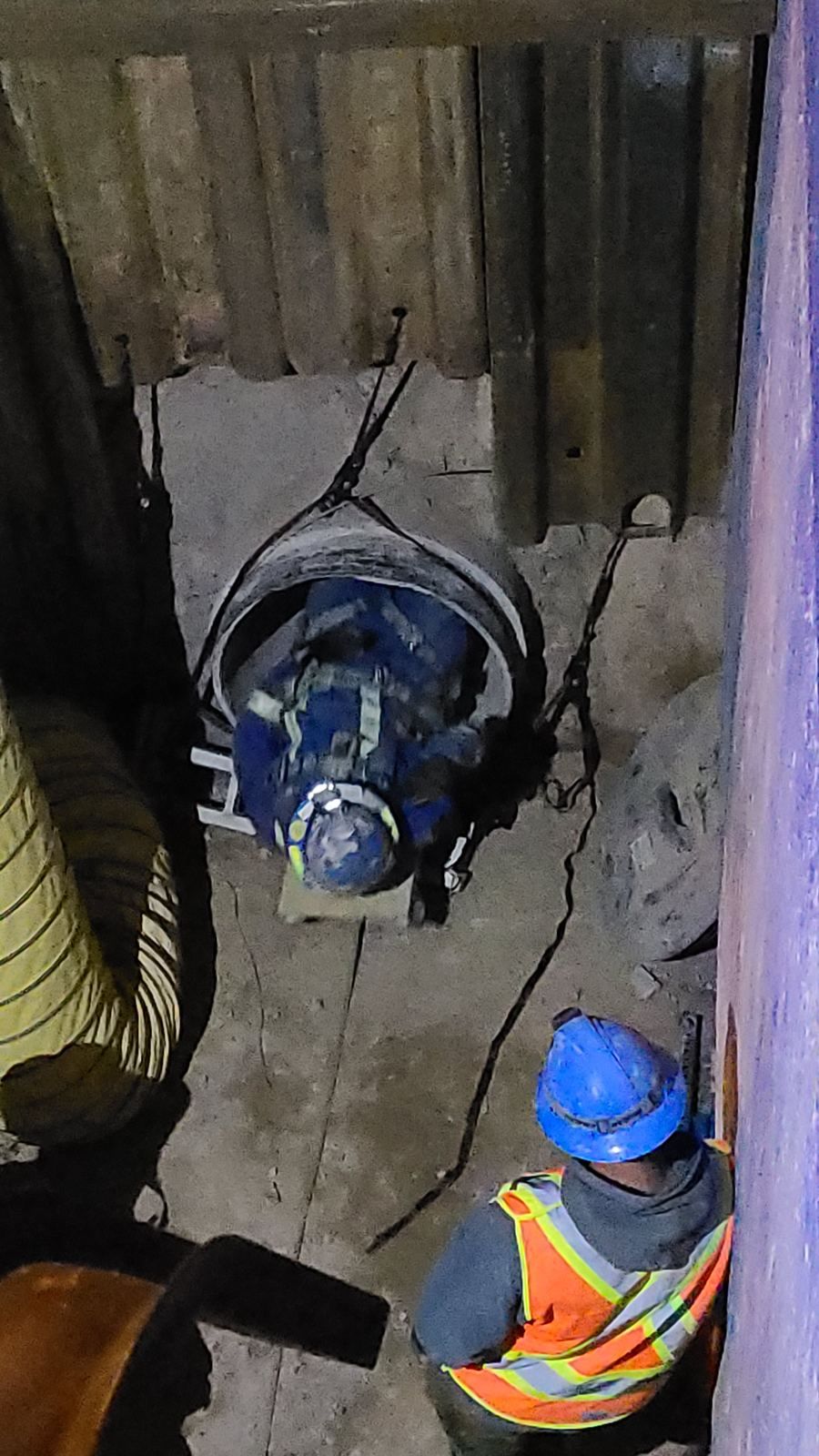

Thirty-six inches is the practical dividing line. Below it, the main keeps running during the inspection. Above it, the line has to be drained, which turns the inspection into a scheduled outage and usually means coordinating with a shutdown that was going to happen anyway.
What the inspection measures, and what it cannot
A single run on bar-wrapped pipe reports remaining steel cylinder wall thickness and a count of individual bar breaks. Remote field testing reads through cement mortar and scale up to 25 to 30 mm thick, roughly an inch, so the pipe does not need to be cleaned to bare metal. The smallest defect PICA reports is 1 inch by 1 inch at 20 percent wall loss.
Two limits are worth stating plainly, because they affect how the data should be used. The signal passes through the full wall, so it sees wall loss on the inside surface and the outside surface at the same time without differentiating between them. And near field testing, which is the right method for broken wire counts in PCCP, is not the method PICA recommends for bar-wrapped pipe, because it reports nothing about the cylinder. The difference between NFT and RFT is worth understanding before a scope is written.
Other methods have their place around the main run. Acoustic pre-screening with the multi-sensor acoustic sphere finds leaks, gas or air pockets and pressure anomalies in service, with data analysed within 72 hours for leak identification, which is a good way to narrow a long transmission main before committing to a full condition assessment. CCTV with laser or lidar documents what the inside of the pipe looks like once it is dewatered. Handheld ultrasonic testing verifies findings at excavated locations.
What you receive
A preliminary pass is typically available about a week after the run. It is a triage pass flagging wall loss defects of 50 percent or greater, not a complete analysis, and it exists so that anything urgent surfaces immediately. Final findings follow off-site quality control and typically take 8 to 12 weeks.
The final condition assessment locates each indication along the line and reports it against your as-builts, so segments can be ranked, dig locations chosen, and a replacement program aimed at the footage that needs it. That is the practical argument for inspecting: on most transmission mains the deteriorated fraction is a small share of the total length, and finding it turns a blanket replacement estimate into a targeted one.
Proof that the numbers hold up
Every inspection vendor claims accuracy. The useful question is whether anyone independent has checked.

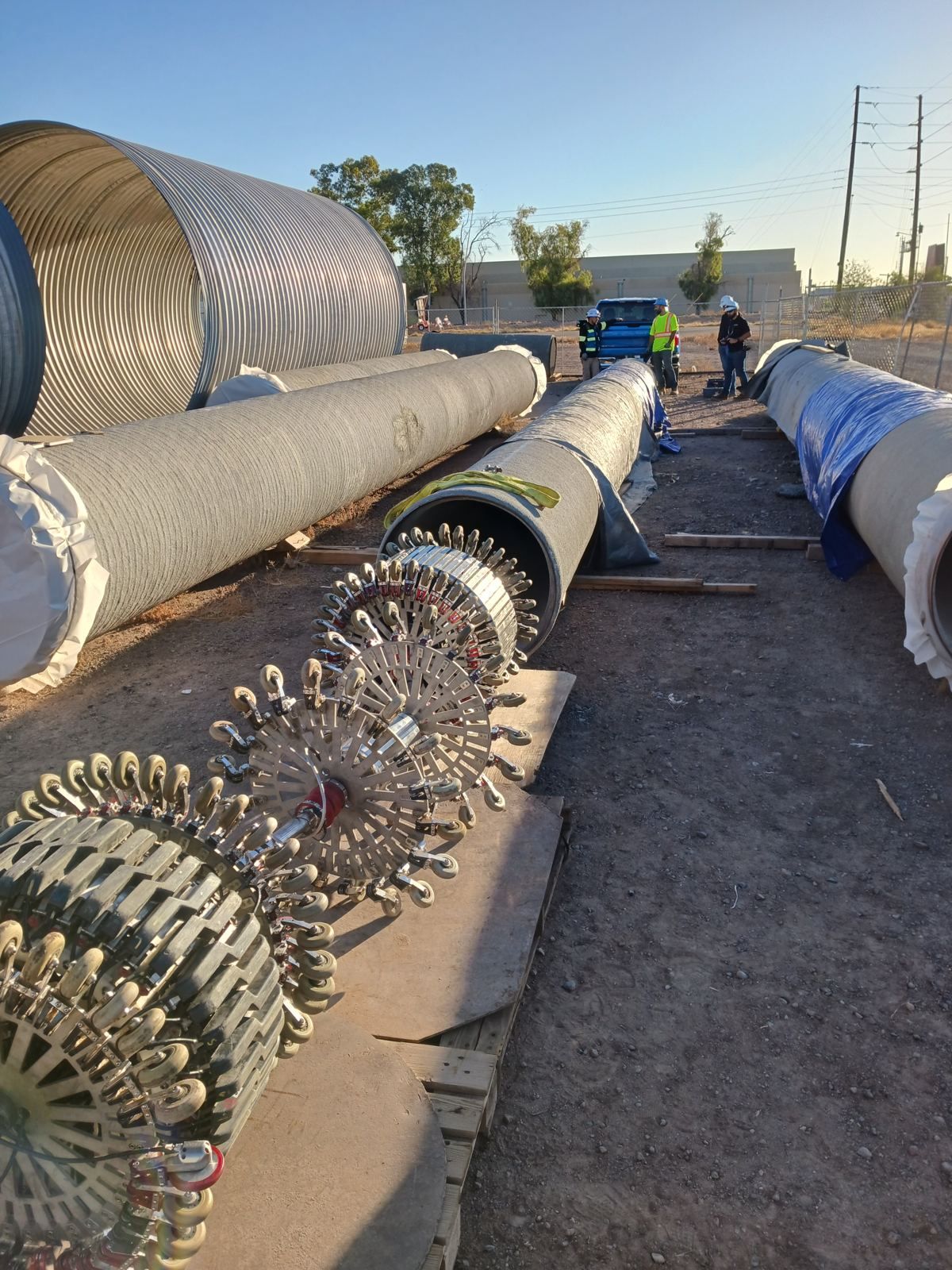

Simpson Gumpertz and Heger ran a blind comparison of electromagnetic inspection tools on AWWA C303 bar-wrapped pipe. The defects were hidden from the vendors, and the tool findings were afterwards checked against physical measurements taken in the field. PICA's tools were part of that comparison. The study is published in the ASCE Library, and PICA's summary of the work is on the blind verification testing page.
Field results make the same point in a different way. On one 2021 inspection of about 11,600 feet of bar-wrapped pipe, PICA reported 365 indications, including 117 locations with less than 20 percent of the wall remaining, and not a single through-wall defect anywhere on the line. Nothing had leaked yet. Without the inspection, that main would have looked entirely healthy from the outside and from its service record.
Volume matters too, because this pipe type is a specialty rather than a sideline. PICA has inspected more than 20 miles of bar-wrapped pipe across 19 projects in four states and provinces since 2021, at diameters from 18 to 48 inches in the field.
What it costs, and what to compare it against
Large-diameter out-of-service programs on concrete pressure pipe generally run $100,000 to $200,000 or more per mile. Diameter, linear footage, access complexity, how many inspection tiers are used and mobilization distance all move the number, and in-service work on smaller mains sits below that range.
The comparison that belongs in a capital plan is not inspection against doing nothing. It is inspection against replacing footage that did not need replacing, and against the cost of an unplanned failure on a transmission main, which arrives with emergency repair premiums, lost water and third-party damage claims attached. PICA's pipeline condition assessment services are built around that comparison.
Where to go next
- Understanding remote field testing for bar-wrapped pipelinesfor how the measurement works and what the data looks like.
- PCCP inspectionif the line in question turns out to be prestressed rather than bar-wrapped.
- Water main inspectionfor distribution and smaller transmission mains.
- About PICAincluding the engineering team behind the tools.
Frequently asked questions
What size of bar-wrapped pipe can PICA inspect?
From 10 to 72 inches in diameter, which covers the full size range of the AWWA C303 standard. Pipe from 10 to 36 inches is inspected in service with the SeeSnake and Chimera tools, free-swimming or winched. Above 36 inches the pipe is inspected dewatered and winched, using RAFT at 36, 42 and 48 inches and EMIT above that.
Can a bar-wrapped main be inspected without taking it out of service?

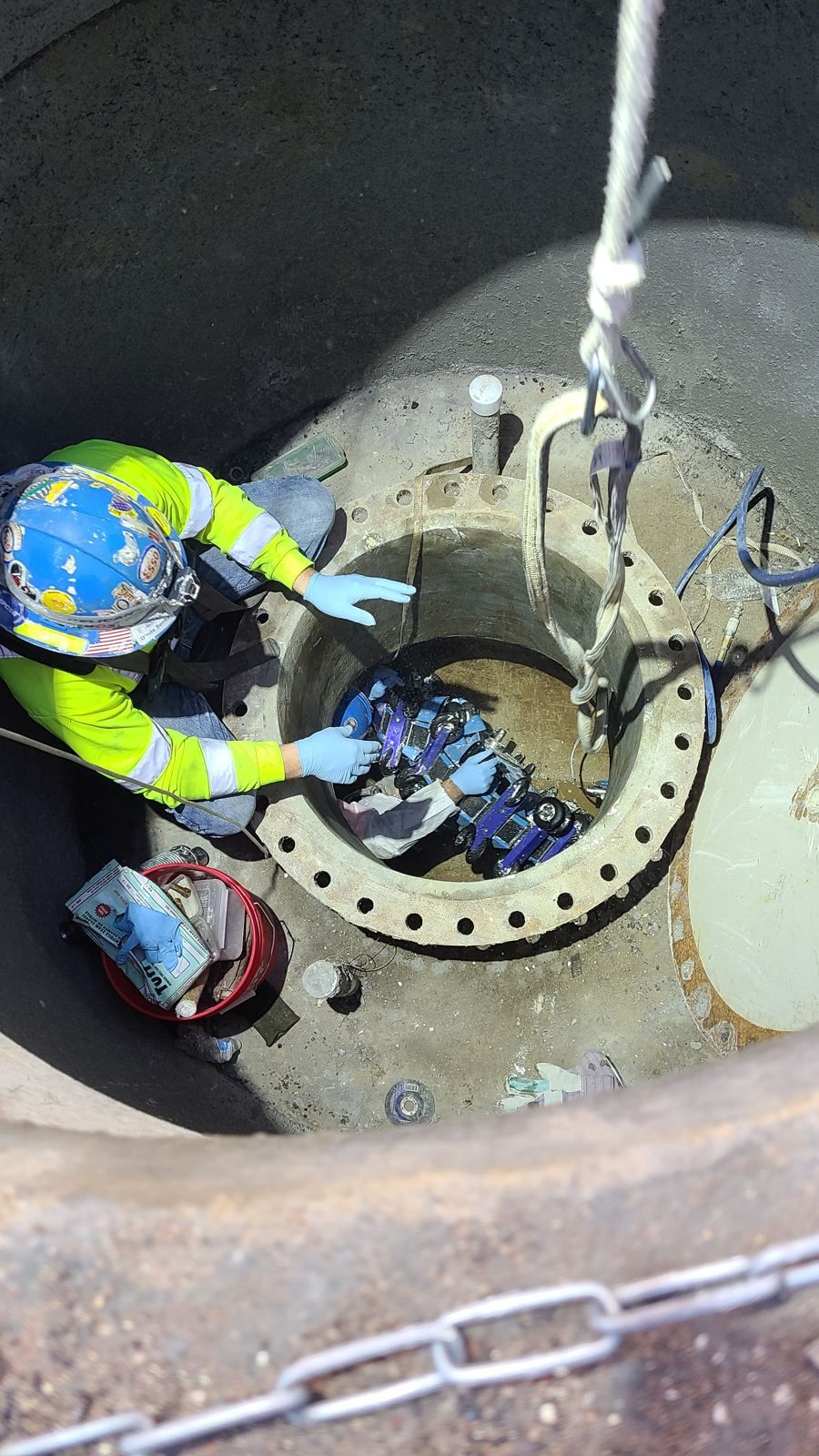

Up to 36 inches, yes. The tool runs inside the pressurized main, so the line keeps working. Above 36 inches the pipe has to be dewatered, because the larger tools are winched through an empty line.
Is bar-wrapped pipe the same as RCCP or concrete cylinder pipe?
No. Concrete cylinder pipe, or CCP, is the umbrella term for the family. Inside it are prestressed concrete cylinder pipe (C301), reinforced concrete cylinder pipe (C300), reinforced concrete non-cylinder pipe (C302, usually written RCP) and bar-wrapped pipe (C303). Bar-wrapped pipe and RCCP are different products, and older records often use the names loosely. Pretensioned concrete cylinder pipe is an old name for bar-wrapped pipe, retired because it was confused with PCCP.
Does near field testing work on bar-wrapped pipe?
Near field testing can detect five or more adjacent bar breaks, but it reports nothing about the steel cylinder, and on this pipe the cylinder carries a much larger share of the load than it does in PCCP. PICA uses remote field testing on C303, which measures remaining cylinder wall and counts individual bar breaks in the same run.
How quickly does PICA report results?
A preliminary pass is typically available about a week after the run, flagging wall loss defects of 50 percent or greater. It is a triage pass rather than a complete analysis. Final findings follow off-site quality control and typically take 8 to 12 weeks.
What does a bar-wrapped pipe inspection cost?
Large-diameter out-of-service programs on concrete pressure pipe generally run $100,000 to $200,000 or more per mile, depending on diameter, footage, access, how many inspection tiers are used and mobilization distance. In-service work on smaller mains sits below that range.
Has electromagnetic inspection of C303 pipe been independently tested?
Yes. Simpson Gumpertz and Heger ran a blind comparison of electromagnetic inspection tools on C303 pipe, with the defects hidden from the vendors and the findings afterwards checked against field measurements. The study is published by ASCE.
How much cylinder wall do your C303 mains have left?
Bar-wrapped pipe hides its condition well. The mortar coating that protects the steel cylinder is the same thing that makes external inspection useless, and age alone tells you very little about which segments are in trouble. PICA measures remaining cylinder wall and counts bar breaks in a single run, from 10 to 72 inches, in service up to 36 inches.
