The Tarrant Regional Water District (TRWD) operates one of North America’s largest Prestressed Concrete Cylinder Pipe (PCCP) systems—spanning over 260 miles and serving more than two million people. Following multiple catastrophic water main failures linked to wire corrosion and hydrogen embrittlement, TRWD partnered with Pipeline Inspection and Condition Analysis Corporation (PICA) to implement a proactive, knowledge-based PCCP asset management program. Using advanced Remote Field Technology (RFT), the program accurately detects wire breaks, preload loss, wall thickness variations, and corrosion, enabling utilities to predict failures before they occur and prioritize repairs.

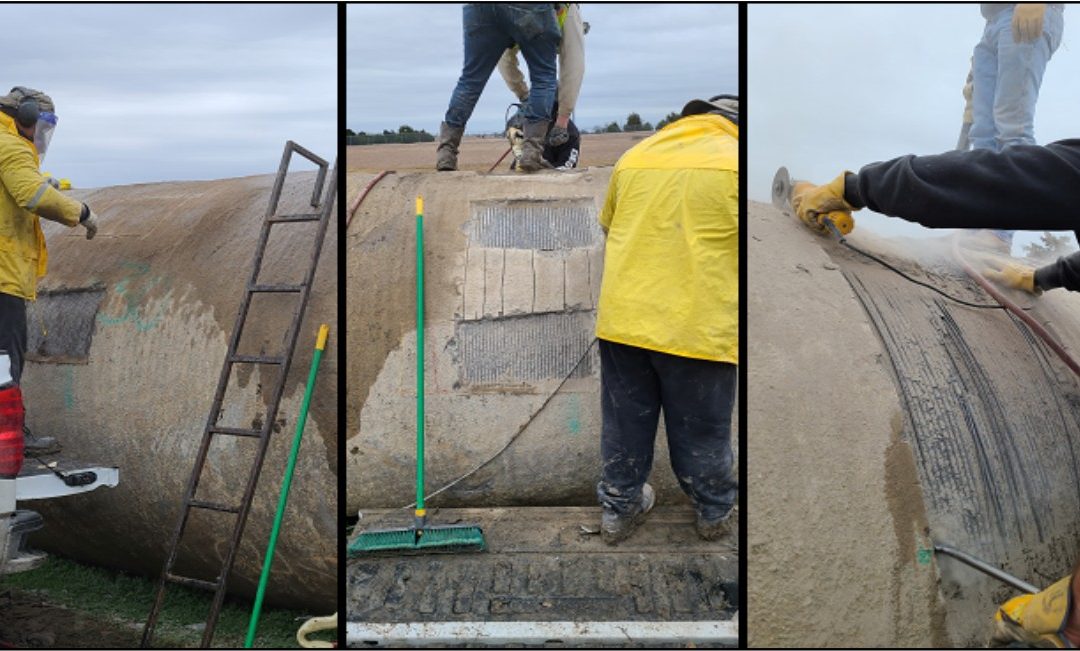

Phases two and three of the study combined controlled testbed experiments with inspections of buried pipelines to assess the relationship between broken prestressing wires, preload changes, and pipeline integrity. Controlled wire-cutting experiments and mortar removal simulated failure mechanisms, while PICA’s Electromagnetic Inspection Tool (EMIT) measured conductivity, magnetic permeability, and wall thickness to identify anomalies. The study successfully distinguished between hydrogen embrittlement-related breaks (no preload loss) and corrosion-induced breaks (preload and wall loss), creating a predictive repair model to rank pipeline segments by risk.
Key findings revealed that even a small number of distributed wire breaks are detectable using RFT, and that localized preload restoration using hydraulic tensioning straps shows partial success. Field data confirmed that segments with both preload loss and wall corrosion require immediate intervention, while segments with isolated breaks can be safely monitored. The resulting decision model categorizes pipelines into monitor, repair, or emergency repair tiers, enabling more efficient use of maintenance budgets while enhancing public safety.
By integrating predictive inspection data with targeted intervention strategies, this proactive PCCP asset management approach helps utilities extend asset life, prevent service disruptions, and reduce capital expenditures. The methodology also sets a new standard for pipeline inspection and condition assessment, showing that combining electromagnetic inspection technologies with field validation and data modeling delivers significant value for large-diameter water transmission systems.
Loading Viewer...
FAQ About General PCCP & Asset Management
Q: What is PCCP?
A: Prestressed Concrete Cylinder Pipe (PCCP) is a composite pipe made of a concrete core, a steel cylinder, prestressing wires, and a mortar coating.
Q: Why is PCCP used in water transmission systems?
A: PCCP offers high strength, durability, and large-diameter capability for long-distance water transmission.
Q: What is the biggest cause of PCCP failure?
A: Wire corrosion and hydrogen embrittlement are primary causes, leading to loss of preload and potential rupture.
Q: What is preload in PCCP?
A: Preload is the uniform compressive stress applied to the concrete core by tensioned steel wires, which helps resist internal pressure.
Q: Why is proactive PCCP maintenance important?
A: It allows early detection of high-risk pipe sections, preventing catastrophic failures and reducing costs
FAQ About Inspection Technologies
Q: What is Remote Field Technology (RFT)?
A: RFT uses low-frequency electromagnetic fields to detect wire breaks, preload loss, and wall thickness changes without direct pipe contact.
Q: What is the EMIT tool?
A: PICA’s Electromagnetic Inspection Tool (EMIT) measures signal phase shift and amplitude to locate wire breaks and assess cylinder integrity.
Q: Why is RFT ideal for PCCP inspection?
A: It can inspect through thick internal cement liners and does not require direct contact with the steel cylinder.
Q: Can RFT detect hydrogen embrittlement damage?
A: Yes, by detecting broken wires without preload loss, which is typical of hydrogen embrittlement.
Q: What supplementary tools are used with RFT?
A: CCTV, LiDAR, and strain gauges provide visual, geometric, and stress data for a complete condition assessment.
FAQ About Damage Detection & Analysis
Q: How does RFT detect wire breaks?
A: By changes in pipe conductivity caused by broken or cut prestressing wires.
Q: How does RFT measure preload loss?
A: By detecting changes in relative magnetic permeability when enough wires break to release tension.
Q: How is wall thickness loss detected in PCCP?
A: Through changes in electromagnetic signal indicating steel cylinder corrosion.
Q: How many wire breaks are detectable?
A: Even as few as five broken wires, spaced with three intact wires between, are detectable compared to baseline data.
Q: What is the difference between corrosion-induced and hydrogen embrittlement-induced wire breaks?
A: Corrosion-induced breaks often cause preload loss, while hydrogen embrittlement-induced breaks usually do not.
FAQ About Repair & Maintenance Strategies
Q: What is the recommended action for hydrogen embrittlement wire breaks?
A: Monitor over time for worsening conditions.
Q: What is the recommended action for corrosion-induced wire breaks without wall loss?
A: Repair at the earliest convenience.
Q: What is the recommended action for corrosion-induced wire breaks with wall loss?
A: Emergency repair or reinforcement, depending on severity.
Q: Can preload be restored in PCCP?
A: Partially, using hydraulic tensioning straps, though effectiveness may vary around the circumference.
Q: When is full pipe replacement necessary?
A: When distributed wire breaks occur along the entire pipe length
FAQ About Field Applications & Case Study
Q: Who operates one of the largest PCCP networks in North America?
A: The Tarrant Regional Water District (TRWD) in Texas.
Q: How long is the TRWD PCCP network?
A: Over 260 miles, serving more than two million people.
Q: What was the main goal of the TRWD–PICA program?
A: To develop a predictive model linking wire breaks, preload loss, and failure risk.
Q: What did the testbed studies simulate?
A: Wire cuts, concrete mortar removal, and cylinder punctures to replicate real failure mechanisms.
Q: How did the findings change TRWD’s maintenance approach?
A: They enabled a shift from reactive to proactive maintenance, prioritizing high-risk areas
